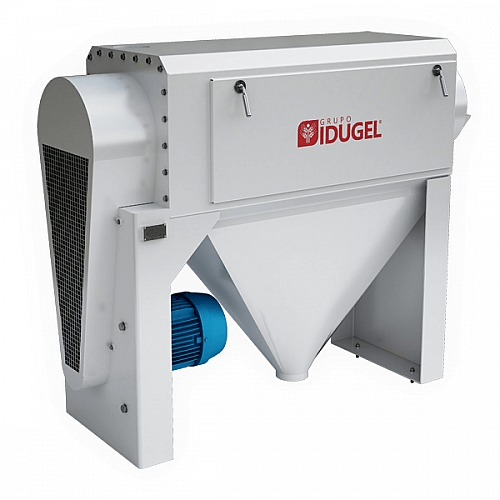

Equipment consisting of an upper entrance offset from the center. It has an initial helicoid complement that directs the product to the rotor with vanes arranged in the direction of advancement and distribution of the product to the other end of the equipment. It is equipped with a self-cleaning system for the screens provided by air displacement, cleaners and advancers technically attached to a dynamically balanced rotor. The output of the product is at the opposite end of the inlet. The product classified by forced sieving is done by passing this product through the perforated plate and collected at the bottom of the equipment.

Construction:

In SAE steel or AISI steel.

Capacity:

Most indicated from 0.5 t/h to 2 t/h

Use:

For the removal, through forced sieving, of flour added to the bran shell or even for prior separation of products interspersed between sieves and milling. Making possible
